Circuit Simulator

Note:

This is a one-week opensource project inspired by SICP - 3.3.4 - A Simulator for Digital Circuits

You can check out the code on my GitHub page here: github.com/hardikpnsp

Info:

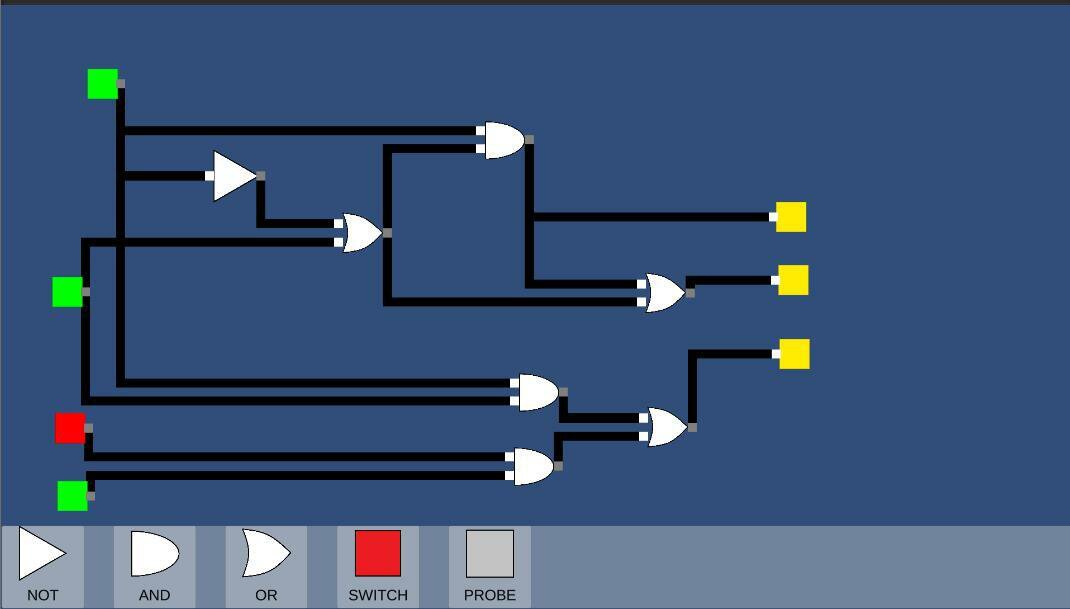

• The simulation only has 5 different objects you can play around with for now.
• AND gate, OR gate, NOT gate: Three different logic gate
• Switch: You can use a switch to provide initial input logic (Red = 0, Green = 1) You can switch the logic by clicking on a switch
• Probe: Probe can be used as LED lights (Grey = 0, Yellow = 1
• You can check the help? button in-game for more info...
